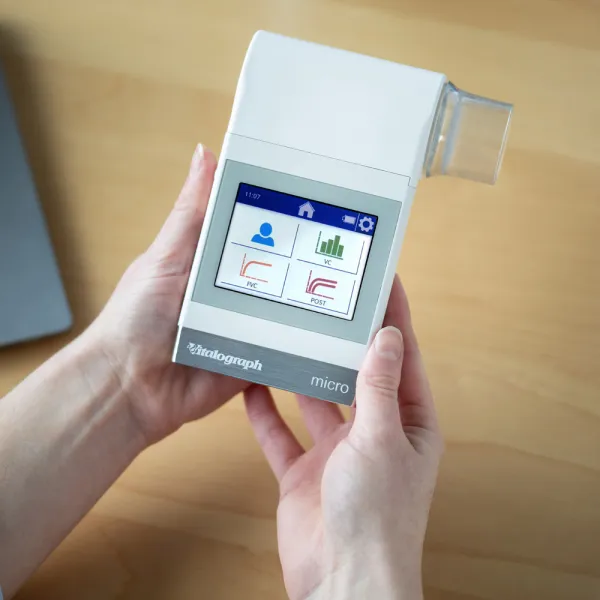

The micro™ is a handheld spirometer offering full feature functionality. Powered by USB or batteries, the micro is portable and ideal for simple testing and reporting of spirometry.
Ideal for use on subjects within general healthcare and occupational health environments. Spirometry test results and graphs are displayed on the device for instant review. Vitalograph Device Studio reporting software is included as standard for generating PDF reports and receiving the latest firmware updates.
The flowhead on the micro can be set up to work remotely using the optional Remote Flowhead Kit. Separating the flowhead from the device allows the user to view the device screen during testing.
Keeping the device clean is easy and inexpensive using Bacterial Viral Filters (BVF™), with validated cross-contamination efficiency >99.999%.
The micro Spirometer comes with:
- Vitalograph Device Studio Software
- Protective carry pouch
- USB cable
Multiple testing options
|
Test Modules
|
Description
|
Parameters
|
Onscreen Graphs
|
|
Forced Vital Capacity
|
The total volume of air that can be exhaled during a maximal forced expiration effort.
|
FVC, FEV1, FEF25-75, PEF, etc
|
-
Flow/Volume/Time
-
Volume/Time
|
|
Vital Capacity
|
The total volume of air that can be exhaled during a normal expiration effort.
|
VC, IC, IVC, TV
|
|
|
Bronchodilator Responsiveness Testing
|
Determines the degree of improvement of airflow in response to bronchodilator administration as measured by changes in FEV1 and FVC.
|
VC, FVC, FEV1, FEF25-75, PEF, etc
|
-
Pre-Post Flow/Volume
-
Pre-Post Volume
|
