6560, Portable with Handrail

Availability: In Stock

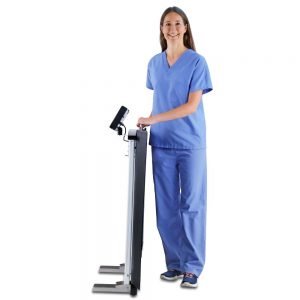

DETECTO’s 6560 is a multi-purpose clinical scale for wheelchair weighing and it also features an elegant, curved handrail that provides patient stability while weighing standing. By sliding the release levers, the columns easily fold down and lock for fast-and-easy transport and vertical storage. Enjoy the time-saving benefits of this scale by using the convenient pushbutton or keypad tare to remove the wheelchair weight. The scale features 1,000 lb / 450 kg capacity, units locking into Kilograms or Pounds, two-way built-in ramps for accessibility from both sides, large 32 in x 36 in / 81 cm x 91 cm platform, clinical-grade accuracy to 0.2 lb / 0.1 kg, battery or AC power, up to 99 tares (optional) to store wheelchair weights, and Wi-Fi/Bluetooth is available in some models for wireless EMR/EHR connectivity. The platform is only 2.2 inches/56 mm high for easy patient accessibility and comfort while weighing either standing or in a wheelchair. OIML EC class III approved model is available.

Compare
Category:

Capacity (6560): 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Capacity (6560KGEU): 300 kg x 0.1 kg or 350 kg x 0.2 kg (OIML EC class III approved)
Platform Size: 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm
Keypad: 19 key, color-coded, sealed membrane
Connectivity: RS232 serial, USB and optional Ethernet. Wi-Fi/Bluetooth available on some models.
LCD Display Dimensions: 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD
Power: 6 C batteries (not included) or model MV1PWR AC adapter included on some models (-AC)
Resolution: 5,000 divisions, max.
Operating Temperature: 14° to 104°F (-10° to 40°C)
Ramp Size: 36 in (91.4 cm) W x 7.9 in (20.2 cm) L each
Display: 5 digit, 7 segment, 7/8 inch (22.23 mm) high LCD weight digits
Country of Origin: USA
Includes: Scale includes 2-way ramps, integral wheels, curved handrail columns, weight indicator and guide handles
Optional: Wi-Fi for EMR/EHR, Welch Allyn connectivity, and AC adapter
UPC Code: (6560): 809161302202
UPC Code (6560KGEU): 809161304503
Net Weight: 116 lb / 53 kg
Shipping Weight: 126 lb / 57 kg

Features

  • 1000 lb/450 kg Capacity
  • 2-Way Easy Access Ramps
  • Units Locking into Pounds or Kilograms
  • Wi-Fi/Bluetooth Available on Some Models for Wireless EMR/EHR Connectivity
  • 6 C Batteries (Not Included)
  • BMI Calculation
  • Curved Handrail for Patient Stability
  • Easily-Collapsible Column with Quick Release Lever
  • EMR/EHR Ready
  • Integral Wheels Ease Transport
  • Low-Profile 2 inch/56 mm High Platform
  • OIML EC Class III Model Available
  • Ramps Rest On Floor for Easier Patient Access
  • Single-Pass Weighing with Keypad and Pushbutton Tare
  • Spacious 32 in x 36 in / 81 cm x 91 cm Platform
  • Vertical Mode for Transport and Storage
  • Ethernet Optional

Resources

6560/6570 Wheelchair Scales Bulletin

Bulletin for DETECTO’s 6560/6570 portable scales with a curved handrail for patient stability while weighing standing.

EMR/EHR Connectivity Flyer

Flyer for all DETECTO scales using the MedVue indicator illustrating the EMR/EHR connectivity features.
